ILLONA HT15S Wired Room Thermostat

ILLONA HT15S wired room thermostat with TPI algorithm stands out with its user-friendly design.

Thanks to its TPI algorithm, it maximizes your comfort and reduces your energy costs.

The illuminated LCD instantly displays the room temperature and the set temperature value. It combines comfort and ease of use with its 360° rotating button, making the ideal temperature management possible.

Thanks to TPI technology, your room thermostat creates a temperature map of your home and learns how long it takes to reach your set temperature and how to maintain this temperature with minimum energy consumption. The artificial intelligence algorithm prevents your heating unit from running continuously while keeping your home at the desired temperature. This ensures comfort and maximum savings on energy bills.

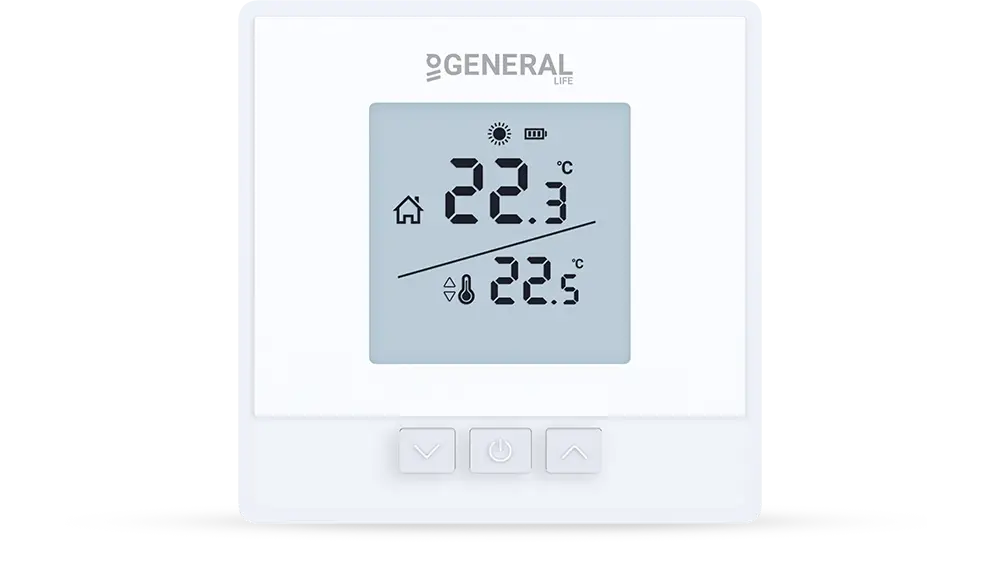

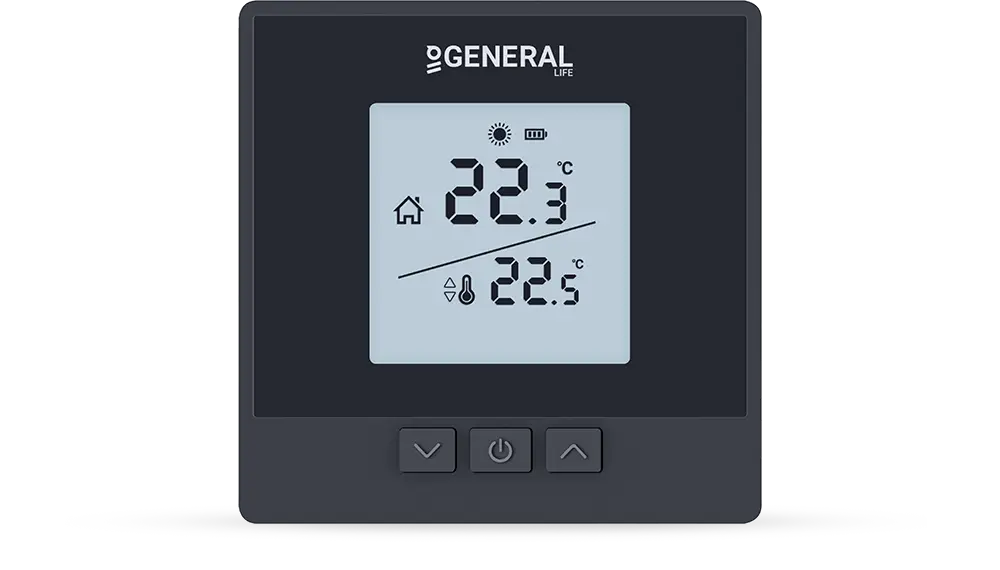

ILLONA HT15S Wired Room Thermostat - White ILLONA HT15S Wired Room Thermostat - Black

TPI Algorithm

Room Thermostats with TPI technology predict when the temperature of your home will increase above or decrease below the set temperature and turn the heating unit on and off accordingly. This ensures that your home stays at the set temperature with minimal deviations up and down.

It provides minimum energy consumption by calculating how long your heating unit should run.

TPI Algoritması

Easy Switching between Heating/Cooling Modes

You may need to adjust the temperature of your home according to the seasons. You may want to enjoy warmth in winter and coolness in summer. Your room thermostat is designed to give you the best comfort for every season.

You can quickly and easily switch between heating and cooling modes with your room thermostat.

Wired Room Thermostat

Wired room thermostat communicates with the heating unit via a cable. It is usually mounted on the wall. We recommend placing it in a central location where there is not much air circulation.

Easy to Use

You can easily adjust the desired temperature with the button and showcase the user-friendly design and minimalist aesthetics in your home. You can adjust all settings with a single button on the setting screen.

Battery Indicator

The battery indicator notifies you about the battery consumption of your room thermostat. Changing batteries is very easy. When a low battery warning appears on the display, simply insert new batteries.

Technical Data

ILLONA HT15S Wired Room Thermostat Technical Data
Dimensions (H/L/W)
85.7mm / 85.7mm / 33.5mm

Operating Current
3V DC (2 x AAA Alkaline Battery)

Relay NO Switching Current
2A/30VDC (Resistive Load) 0.5A/125VAC (Resistive Load)

Temperature Measurement Accuracy
0.1°C

Operating Temperature Range
(5°C) – (30°C)

Battery Life
1 Yıl (2 x AAA)

Operating Temperature
(-10°C) – (+50°C)

Storage Temperature
(-20°C) – (+60°C)

Documents

Kurulum ve Kullanım
