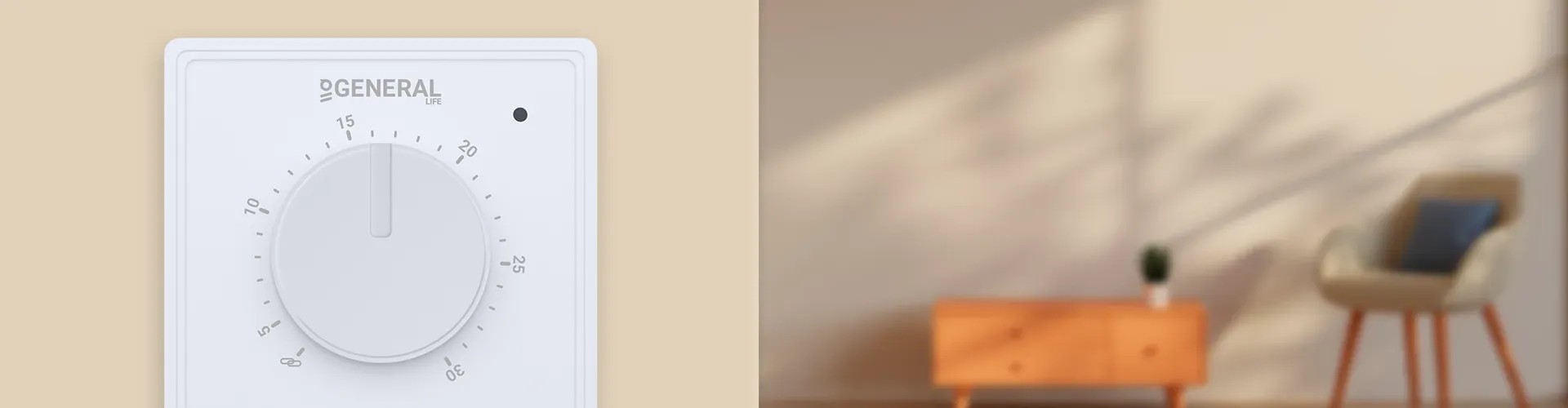

GAIA HT10

WIRED ROOM THERMOSTAT

HT14 wired room thermostat stands out with its ease of use, precise temperature measurement and affordability for end users.

HT14, which provides a wired connection with the heating unit, combines comfort and ease of use with the temperature you can set via the button, making the ideal temperature management possible in residential environments.

GAIA HT10

WIRED ROOM THERMOSTAT

GAIA HT10

WIRED ROOM THERMOSTAT

HT14 wired room thermostat stands out with its ease of use, precise temperature measurement and affordability for end users.

HT14, which provides a wired connection with the heating unit, combines comfort and ease of use with the temperature you can set via the button, making the ideal temperature management possible in residential environments.

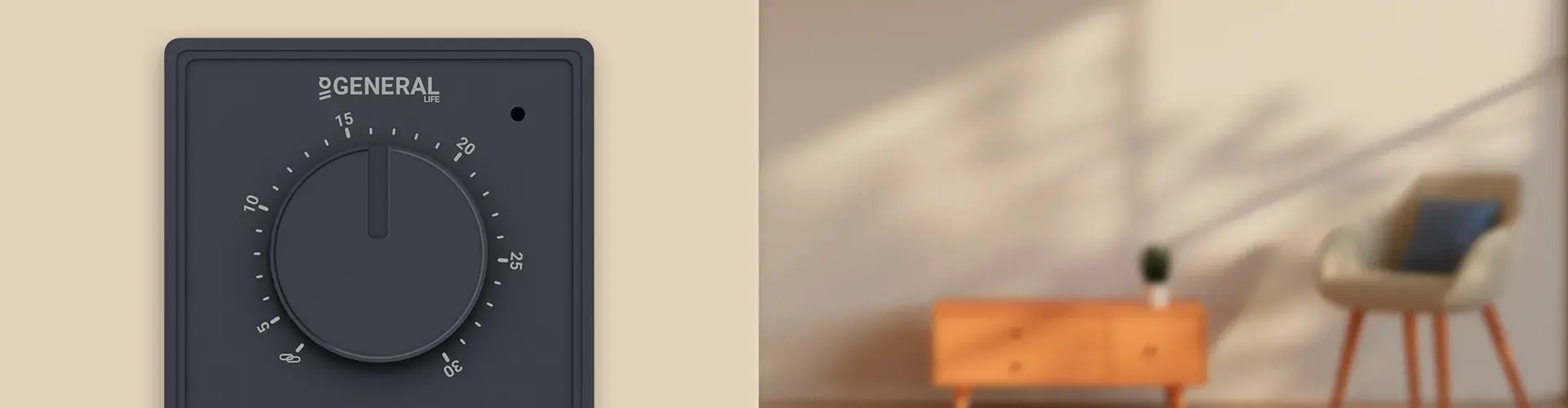

ht14-room ht14b-room

Thanks to TPI technology, your room thermostat creates a temperature map of your home and learns how long it takes to reach your set temperature and how to maintain this temperature with minimum energy consumption. The artificial intelligence algorithm prevents your heating unit from running continuously while keeping your home at the desired temperature. This ensures comfort and maximum savings on energy bills.

ht14-room ht14b-room

TPI Algorithm

Room Thermostats with TPI technology predict when the temperature of your home will increase above or decrease below the set temperature and turn the heating unit on and off accordingly. This ensures that your home stays at the set temperature with minimal deviations up and down.

It provides minimum energy consumption by calculating how long your heating unit should run.

TPI Algoritması

Wired Room Thermostat

Wired room thermostat communicates with the heating unit via a cable. It is usually mounted on the wall. We recommend placing it in a central location where there is not much air circulation.

Easy to Use

You can easily set the desired temperature with the button. Your room thermostat turns off the heating unit when your home reaches the set temperature and helps to keep the room temperature within a certain range.

Precise Temperature Measurement

You can control the temperature of your home precisely with the precise temperature measurement feature. The 0.1°C temperature measurement accuracy contributes to your comfort by sensing small temperature changes.

Technical Data

Dimensions (H/L/W)
85.7mm / 85.7mm / 33.5mm

Operating Current
3V DC (2 x AAA Alkaline Battery)

Relay NO Switching Current
2A/30VDC (Resistive Load) 0.5A/125VAC (Resistive Load)

Temperature Measurement Accuracy
0.1°C

Operating Temperature Range
(5°C) – (30°C)

Battery Life
1 Yıl (2 x AAA)

Operating Temperature
(-10°C) – (+50°C)

Storage Temperature
(-20°C) – (+60°C)

Documents

Kurulum ve Kullanım
